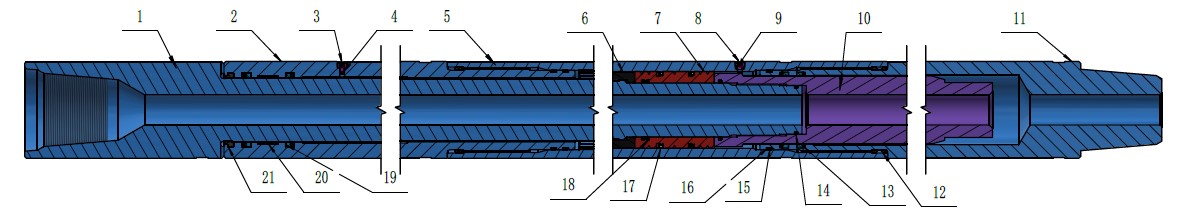

Fishing Jar

The Fishing Jar is the result of years of continuous improvement based on actual field use. It is a straight-pull operated Jar. This Jar is simple to assemble and easy to use. The Fishing Jar is used for fishing, testing, coring, reaming, light drilling, side tracking, and washover operations.

Each blow can be controlled positively by the operator to deliver a very light blow or a blow of very heavy impact. Full circulation may be maintained throughout the tool for effective flushing. Full torque may be utilized in either direction and is at all times by means of heavy duty spines which are continuously in engagement.

Only straight pull is required to operate the Fishing Jar, and successive blows can be struck as often as the operator can slack off and raise the running string.

RECOMMENDED SPARE PARTS:

(1) 1 Service Kit；2) 1 Washpipe；3) 2 Piston Assemblies；4) 16 Non-Extrusion Rings；5) 16 Seal Protector Rings；6) 4 Mandrel Body Fill Plugs；7) 4 Middle Body Fill Plugs；8) 8 Packing Sets；9) 1 Mandrel Body Setting Tool；10) 1 Piston Setting Tool；11) 4 Mandrel Body Seal Sets

SPECIFICATIONS
